KB Tool and Die - Precision Stamping Dies, Prototypes, Wire EDM Services, CNC Machining






Click to View Environmental Policy





Precision Stamping Dies-Designers-Builders-Specialists
Experienced, Trusted, Tool and Die Makers & Machinists

K-B Tool & Die supplies a broad range of metal stamping dies such as:

    • Blank Dies
    • Compound Blank & Pierce Dies
    • Cup Draw Dies
    • Deep Draw Dies
    • Form Dies
    • Line Dies
    • Pierce Dies
    • Progressive Dies
    • Sheet Metal Dies
    • Transfer Dies


Our engineering department utilizes Esprit 2015 2D/3D CAD/CAM software and also a UNIX based software package Softech Cimcad 2D/3D CAD/CAM. File formats that we can accept include, but are not limited to DXF - IGS - DWG - ESP - SLDPRT - STEP - X_T. We combine our state-of-the-art-equipment, highly skilled tool & die makers and precision machinists to design exact stamping dies to meet your job requirements.



Stamping die manufacturing involves a precision step-by-step process beginning with a project tooling timeline that includes, but is not limited to, die design, purchasing, machining and milling, heat treatment, finish grinding, assembly, and die try-out. PPAP submission for new stamping dies is available when required by the customer or contract. To ensure our customers that we are meeting their end-product requirements, we utilize a complete line of checking equipment. We continually monitor our die making processes to ensure effectiveness in building precision stamping dies. We strive to improve all aspects of our company for our customers and we stand by our die products and services.


Use our Quote Request form found on the right to receive more information about our stamping die design and build capabilities or call 1-586-795-9003.



Progressive die - heater tank - aluminum Progressive dies - heater tank - aluminum
Progressive dies - bracket - aluminum Compound blank and pierce die - reaction plate - steel

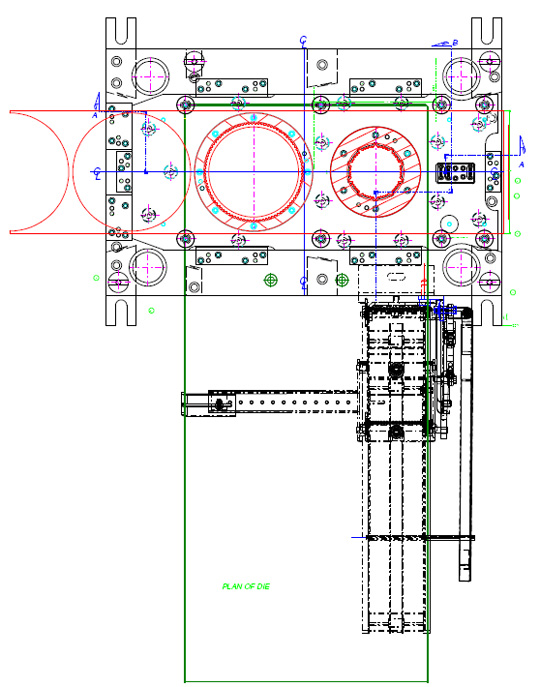

2D CAD drawing- two out compound blank and pierce die

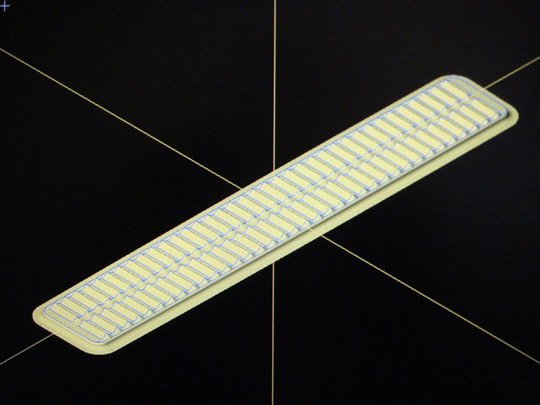

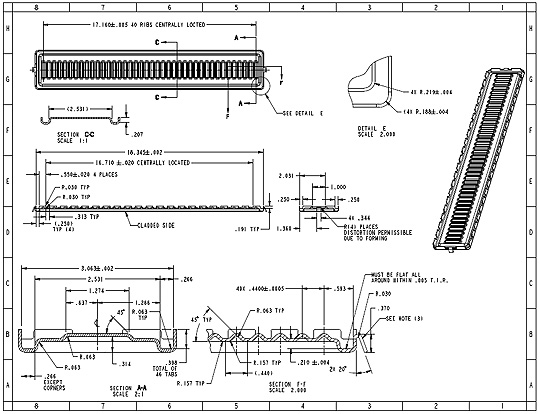

2D CAD drawing- radiator header

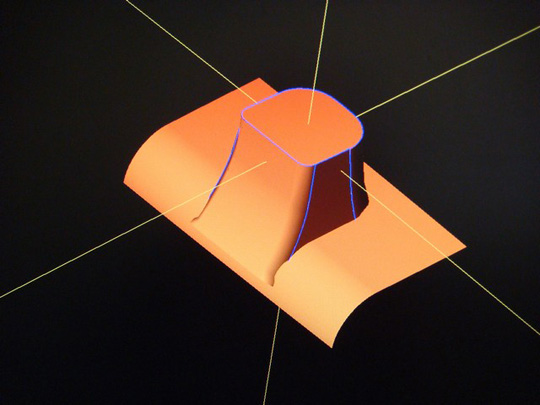

3D CAD drawing- radiator form tool
3D CAD drawing- gage profile













Receive a Quick Quote

* Required Fields

First Name*

Last Name*

Company

Phone*

Email*

Comments

Attach a File:

Enter the code here:



Wire 290P- EDM a 4-axis taper with a 2-axis gear profile.

Haas CNC machining of a radiator header tube flare tool. A-2 steel 56/58 r/c.



35310 Stanley Drive
Sterling Heights, MI (Michigan) 48312
1-586-795-9003       Fax: 1- 586-795-9002     sales@kbtoolanddie.com
